Agile Transformations and First Principles

When IT organizations start down the path of using new methodologies like DevOps, Continuous Delivery/Integration, and Agile workflows, there is a bias to approach things the way you always have while trying to be open-minded and searching for opportunities to leverage the new to eclipse the problems of the old. It is rare for an organization, particularly one that has some time and history behind its practices, to fully embrace new approaches and go all-in from the start.

“It takes too much time away from our established process…”

“We can’t abandon existing infrastructure…”

“This money-making application over here, OldFancyThing, doesn’t fit a continuous delivery process, so we have to keep doing what we’ve always done and to do both is too hard…”

“But we’ve always done it THIS WAY…”

These are likely very familiar responses you’ve heard, especially recently. They’re also examples of reasoning from analogy. There are a lot of opportunities that are missed as a result of this sort of thinking in organizations.

How do you escape such tethered thinking? By insisting on reasoning from first principles.

Reasoning from first principles involves looking at problems from the ground up each time, distilling the actionable targets down to their most basic components. It takes more effort than reasoning from analogy and most people don’t want to spend the time or energy deviating from a working path. Also, the time and energy may not yield a new target or end state that is of more value than existing approaches.

Innovation requires both iteration and bifurcation, with the latter being the territory of reasoning from first principles. We’re familiar with iterative change; in fact, Agile methods essentially demand an iterative workflow but also require breaking down bifurcation into quick cycles of work. Legacy or waterfall project workflows essentially demand bifurcation but at the cost of reducing the impact of the change due to elongated development cycles, thereby reducing innovation. How many of us have been involved in a two-year project with waterfall structure only to have it be canceled around 18 months because the once-valued innovation was no longer that innovative?

For this reason alone, adopting Agile methodologies for your software development and infrastructure engineering practices puts you into a better posture for increasing productivity and delivering innovative value. Continuous delivery & continuous integration workflows are the moving parts of the Agile engine. Sprint stories and sub-tasks are the fuel of the engine, and the engine’s output is iteration and bifurcation over short spans of time. In a sense, you are almost guaranteed to succeed and grow, with minimal risk-taking. What are you waiting for?

GitHub Pages

I’m taking GitHub Pages for a spin with the ansible-mojo repo… seems like a nice way to personalize your GitHub presence and contributions.

githubpages

Atom (is) Smashing

Ask a developer or sysadmin about their favorite code editor and you’re likely to get a passionate reply, one that might involve several minutes of frank words and trash talk about any editor besides THE ONE. Up until recently, I was a diehard CLI coder, with vi being my editor of choice. With over twenty years of experience as a sysadmin, I grew up on vi-style text editing, to the point that as I would enter brief dalliances with GUI editors, I would make sure to get my vi-compatible key mapping in place. The  motor memory savings alone was worth the effort.

A few years ago, I switched to Sublime Text, which never felt right to me, despite it being quite usable, feature-rich,  and popular. The proprietary nature of the software always got under my craw given my FOSS roots. Then, one day about a year ago, I discovered GitHub’s Atom and I haven’t looked back since.

Atom is a near-clone of Sublime in terms of look, feel, and functionality and yet it’s open-source.  It has a vast and rich community of plugin development that is over 5,000 packages strong and growing. Package installation and management is done easily within the Atom UI but also customizable via configuration files. Here is a list of some of the installed packages in my current Atom installation:

  • atom-beautify
  • atom-json-color
  • autocomplete-json
  • autocomplete-modules
  • autocomplete-python
  • editor-stats
  • ex-mode
  • file-icons
  • git-plus
  • highlight-line
  • highlight-selected
  • linter
  • linter-jsonlint
  • merge-conflicts
  • minimap
  • monokai-json
  • pretty-json
  • project-manager
  • rulerz
  • Sublime-Style-Column-Selection
  • vim-mode
  • vim-surround

You’ll notice I have my vi keymapping support in there via ex-mode, vim-mode, and vim-surround. 😉

My favorite package in terms of productivity boost is git-plus. Git-plus allows you to execute git commands within the Atom UI as you edit files. I highly recommend it. So much so that I made this screencast to demonstrate how easily I was able to push changes to a GitHub repo of mine after making a quick edit to a README file.

Ansible Shenanigans: Part II – Sample Playbook Usage

In Part I, I talked about why Ansible and how to configure your own installation using Vagrant, VirtualBox, and Ansible. Now, let’s take a closer look at using Ansible along with the details of my demo playbook collection ansible-mojo.

Once Ansible is up and running, it is extremely useful for managing nodes using ad-hoc commands. However, it really shines once you start developing collections of commands, or “plays”, in the form of “playbooks” to manage nodes. Similar to recipes and cookbooks in Chef, Ansible’s plays and playbooks are the basis for a best-practice implementation of Ansible to manage your infrastructure in a consistent, flexible, and repeatable fashion.

For ansible-mojo, I wanted to create a set of simple playbooks that would be helpful in demonstrating how to configure nodes with some basic things like:

  • a dedicated user account “ansible” for deployment standardization,
  • installation of standard packages,
  • management of users and sudoers content

Initial Ansible Playbook Run

The anisible-mojo repo contains several files: playbooks, a variables file, and a couple of shell environment files. All playbook content is based on YAML-formatted text files that are easily understandable. I opted to have a single primary playbook (main.yml) that does some initial node configuration then includes other playbooks for specific configuration changes like configuring users (user-config.yml) and installing sysstat for SAR reporting (sysstat-config.yml).

Before I go into details on each of the playbooks, let’s go ahead and do an initial playbook run against our Ubuntu Vagrant box so that we can issue further commands using our dedicated deployment user account “ansible” instead of the “vagrant” user.

NOTE: Be sure that you change authorized_keys in ansible-mojo to contain the public key that you configured your ssh-agent to use for deployment as mentioned in Part I.

In this case, I am using a Vagrant machine called “myvm” and will specify the -e override for ansible_ssh_user to ignore the remote_user setting in ansible.cfg:

[rcrelia@fuji ansible]$ ansible-playbook main.yml -e ansible_ssh_user=vagrant

PLAY [all] *********************************************************************

TASK [setup] *******************************************************************
ok: [myvm]

TASK [Ensure ntpdate is installed] *********************************************
changed: [myvm]

TASK [Ensure ntp is installed] *************************************************
changed: [myvm]

TASK [Ensure ntp is running and enabled at boot] *******************************
ok: [myvm]

TASK [Ensure aptitude is installed] ********************************************
changed: [myvm]

TASK [Update apt package cache if older than one day] **************************
changed: [myvm]

TASK [Add user group] **********************************************************
changed: [myvm] => (item={u'user_uid': 2000, u'user_rc': u'bashrc', u'user_profile': u'bash_profile', u'sudoers': True, u'user_groups': u'users', u'user_gecos': u'ansible user', u'user_shell': u'/bin/bash', u'user_name': u'ansible'})
changed: [myvm] => (item={u'user_uid': 2001, u'user_rc': u'bashrc', u'user_profile': u'bash_profile', u'sudoers': False, u'user_groups': u'users', u'user_gecos': u'Bob Dobbs', u'user_shell': u'/bin/bash', u'user_name': u'bdobbs'})

... SNIP ...

TASK [Install sysstat] *********************************************************
changed: [myvm]

TASK [Configure sysstat] *******************************************************
changed: [myvm]

TASK [Restart sysstat] *********************************************************
changed: [myvm]

PLAY RECAP *********************************************************************
myvm : ok=17 changed=15 unreachable=0 failed=0

Success! Now, we should have the “ansible” user account provisioned on the Vagrant machine and we will perform all future Ansible plays using that account as specified in ansible.cfg in the remote_user setting.

A Closer Look at Playbooks

ansible-mojo contains several files, with all Ansible syntax included in the YAML files:

  • main.yml
  • vars.yml
  • reboot.yml
  • Playbooks nested below main.yml:
    • user-config.yml
      • ssh-config.yml
      • sudoers-config.yml
    • sysstat-config.yml

Each of these files with the exception of vars.yml is an Ansible playbook. I created a primary playbook called “main” which in turn references a file containing miscellaneous variables (another YAML file called vars.yml), along with two other playbooks, user-config (configures user accounts) and sysstat-config (configures SAR reporting). These latter two files are nested playbooks: their execution is dependent on syntax in the main playbook and the vars_file. Finally, user-config includes two playbooks, one for configuring SSH in user accounts and one for configuring sudo access.

At the beginning of the main playbook, we see that the plays are scoped to all hosts in Ansible’s inventory (hosts: all), that plays will be run as a privileged user on the nodes (become: yes), and that some variables have been stored outside of playbooks in a single location called vars.yml. This pattern of using vars_files allows you to have a single place for information that you may not want to distribute along with playbooks (e.g., user account details) for security reasons.

Next, Ansible tasks (or actions) are defined for installing and configuring ntpd on our nodes, along with aptitude, and a command to update the apt packages on a node if the last update was longer ago than 24 hours.

The nesting of playbooks is a pattern that supports reusability and portability of playbook content, provided you don’t hardcode variables in them. Let’s take a closer look at some of these nested playbooks.

Managing users: user-config.yml

Since user-config is a nested playbook, it consists of a sequence of tasks without any operating parameters like host-scoping or privilege/role settings. It does five things before calling its own nested playbooks at the end:

  1. Creates a user’s primary group using the user’s UID as the GID, via the Ansible group module
  2. Creates a user via the Ansible user module
  3. Creates a user’s .bash_profile via the Ansible copy module
  4. Creates a user’s .bashrc via the Ansible copy module
  5. Creates a user’s $HOME/bin directory via the Ansible file module

The syntax is pretty clear about what is happening if you have even the most basic sort of experience managing user accounts on a UNIX/Linux server. Isn’t Ansible awesome?

What may not be so clear is the syntax that uses the “item.” prefix in variable names. Basically, I designed the playbook to use with_items feature of Ansible so I could iterate through multiple users without duplicating a lot of syntax. The “{{ users }}” variable is a referencing a YAML list called users that is stored in the variables file vars.yml. Looking at that list, it becomes apparent that we are cycling through attributes of each user without hardcoding any user-specific variables in our playbook:

users list from vars.yml:

users:
 - user_name: ansible
 user_gecos: 'ansible user'
 user_groups: "users"
 user_uid: 2000
 user_shell: "/bin/bash"
 user_profile: bash_profile
 user_rc: bashrc
 sudoers: yes
 - user_name: bdobbs
 user_gecos: 'Bob Dobbs'
 user_groups: "users"
 user_uid: 2001
 user_shell: "/bin/bash"
 user_profile: bash_profile
 user_rc: bashrc
 sudoers: no

When you write playbooks in Ansible, you should design your plays as generically as possible so that you can re-use your playbooks across different projects and nodes.

Next, user-config includes the ssh-config playbook which has two tasks: Setup a user’s .ssh directory and the user’s authorized_keys content. In this case, each user is being configured to use the same authorized_keys data, which is probably not how you would configure things in an actual deployment from a security best-practices perspective.

Lastly, user-config includes the sudoers-config playbook which uses Ansible’s lineinfile module to specify sudoers syntax to allow for passwordless sudo invocation. We need this for our ansible account, which will be performing Ansible operations for us non-interactively. This play is special in that it is constrained to only be run when the user is supposed to be added to sudoers (via use of Ansible’s when clause). How is this controlled? Through the sudoers attribute from the users list in vars.html:

users:
 - user_name: ansible
 user_gecos: 'ansible user'
 user_groups: "users"
 user_uid: 2000
 user_shell: "/bin/bash"
 user_profile: bash_profile
 user_rc: bashrc
 sudoers: yes

Managing packages: sysstat-config.yml

One of the classic UNIX/Linux performance monitoring tools is sar/sadc. In the open-source world, sar is packaged within the sysstat tool. One of the first things I do on a new machine is to make sure sar is installed, configured, and operational. So, I created a playbook that installs and configures the sysstat package.

One neat tool in Ansible is the lineinfile module which is useful to make sure a specific line is included in a text file, or some pattern within a line is replaced via a back-referenced regular expression. In the case of sysstat, there is a config file on Ubuntu, /etc/default/sysstat, that ships with a default “off” configuration (i.e., ENABLED=”false”). I used the lineinfile module in sysstat-config.yml to change that line and activate sysstat:

---
 # Install sysstat for sar reporting
 - name: Install sysstat
 apt:
 name: sysstat
 state: present

 - name: Configure sysstat
 lineinfile:
 dest: /etc/default/sysstat
 regexp: '^ENABLED='
 line: 'ENABLED="true"'
 state: present

 - name: Start sysstat
 service:
 name: sysstat
 state: started
 enabled: yes

After the sysstat package is installed (task #1), and its configuration file modified (task #2), I tell Ansible to make sure sysstat is started and enabled to start on reboot via the service module (task #3).

BONUS Play: Interactive Ansible and Server Reboots

Everything you do with Ansible is typically designed to be non-interactive. However, there may be some things that it makes sense to have some sort of interactive processing for depending on your workflow. I thought it might be interesting if I could trigger a server reboot and pause an Ansible playbook until the server(s) all came back online. This is the purpose of the reboot.yml playbook. This playbook could be used after updating kernel packages on hosts, for example. It would need to be modified to add control logic if rebooting all hosts simultaneously in Ansible’s inventory is undesirable. If you want to constrain the run of this all-hosts scoped playbook to a single host in your inventory, you can use the –limit filter:

ansible-playbook --limit myvm reboot.yml

Summary

This wraps up my overview of ansible-mojo’s playbook content and organization. Hopefully by now, you recognize the power and value of Ansible and appreciate just how easy it is to use. In Part I, you learned how to arrange and use Vagrant, VirtualBox, and a source-based copy of Ansible to create a lab environment for your Ansible testing.

In Part II, you learned how to create and use a sequence of Ansible plays to achieve some very common systems deployment goals: creating a deployment user, managing users, distributing ssh authorizations, configuring sudo, and installing packages.

You’ve also learned how to nest playbooks and why you may want to consider stashing certain variables and configuration lists in a file separate from your playbooks.

By downloading ansible-mojo, you can start using Ansible on your own machine immediately, which was my goal for releasing it. I hope you find Ansible as much of a joy to work with as I do.

Future changes to ansible-mojo and accompanying blog posts may or may not include:

  • creating more distro-agnostic playbooks (e.g., plays that work for both CentOS and Ubuntu)
  • integration with Vagrant for local provisioning
  • development of Ansible roles for publishing to Galaxy

Until then, happy hacking and may Ansible make your world better! Cheers!!



Ansible Shenanigans: Part I – Initial Setup and Configuration

I’ve been spending time learning Ansible, the Python-based configuration management framework created by Michael DeHaan. There are two main features that make Ansible worth considering for your configuration management needs: ease of implementation via an agentless design (based on SSH), and a DSL that closely resembles traditional shell scripting command syntax. Ansible “plays” are very easily read and understood whether you are a sysadmin, developer, or technical manager. Having used both Puppet and Chef in the past, which require a client/agent installation, I truly appreciate how quickly one can deploy Ansible to manage servers with minimal overhead and a small learning curve.

One of the best resources I’ve found so far to aid in learning Ansible, in addition to the extensive and quality official Ansible documentation, is Jeff Geerling’s most excellent “Ansible for DevOps.” The author steps you through using Vagrant-based VM’s to explore the use of Ansible for both ad-hoc commands and more complex playbook and role-based management.

All of the work I’ve done with Ansible for this post is publicly available on GitHub, so feel free to clone my ansible-mojo repo and follow along.

Lab setup – Vagrant, VirtualBox, and Ansible

I use a mix of custom VirtualBox VM’s and Vagrant-based VM’s for all of my home devops lab work. For the purposes of this post, I am limiting myself to a Vagrant-based solution as it’s extremely simple and dovetails nicely with the approach in “Ansible for DevOps”. So let’s take a closer look…

I’m using Vagrant 1.8.6 and VirtualBox 5.1.6 (r110634) on my MacBook Pro running Yosemite (10.10.5 w/Python 2.7.11). Historically, most of my recent experience has been with CentOS and AmazonLinux, so I decided to refresh my knowledge of Ubuntu, choosing to use Ubuntu 16.04.1 LTS (Xenial Xerus) for my VM’s using the bento/ubuntu-16.04 image hosted at HashiCorp’s Atlas.

To get started, simply add the bento Ubuntu image to your Vagrant/VirtualBox installation. I store all my Vagrant machines in a directory off my home directory called “vagrant-boxes”:

mkdir ~/vagrant-boxes/bento_ubuntu
cd ~/vagrant-boxes/bento_ubuntu
vagrant init bento/ubuntu-16.04; vagrant up --provider virtualbox

At this point, you should have a working Vagrant machine running Ubuntu 16.04.1 LTS!

Note: I originally started this work using Canonical’s ubuntu/xenial64 official build images for Vagrant. However, I ran into an issue immediately that made provisioning with Ansible a bit wonky, namely the fact that the Canonical image does not ship with Python 2.x installed (Python 3.x is there but is not used for Ansible operations). Be advised of this as you setup your own Ansible sandbox with Vagrant.

Because I like to be able to SSH into my Vagrant machines from anywhere inside my home network, I modify the Vagrantfile to access the VM using a hardcoded IP address that I’ve reserved in my router’s DHCP table. The relevant line if you want to do something similar is:

config.vm.network "public_network", ip: "192.168.0.99", bridge: "en0: Wi-Fi (AirPort)"

I then use this IP address in my local hosts file, which allows me to use it via a hostname of my choosing within the Ansible hosts file.

Next, I had to install Ansible on my MacBook. I could have used the package found within Homebrew, but that version is currently 2.1.0 and I wanted to work from the most current stable release with is v2.2.0. So, I opted to clone down that repo from Ansible’s GitHub project and work from that source:

git clone git://github.com/ansible/ansible.git --recursive
cd ./ansible
source ./hacking/env-setup

The last step configures your machine to run Ansible out of the source directory from the cloned repo. You can integrate the environment settings it generates into your shell profile so that the pathing is always current to your installation. You should now have a working copy of Ansible v2.2.0:

[rcrelia@fuji ansible (stable-2.2=)]$ ansible --version
ansible 2.2.0.0 (stable-2.2 e9b7d42205) last updated 2016/10/20 10:00:56 (GMT -400)
 lib/ansible/modules/core: (detached HEAD 42a65f68b3) last updated 2016/10/20 10:00:59 (GMT -400)
 lib/ansible/modules/extras: (detached HEAD ddd36d7746) last updated 2016/10/20 10:01:02 (GMT -400)
 config file = /etc/ansible/ansible.cfg
 configured module search path = Default w/o overrides

Note: I keep my Ansible files in a directory under my $HOME location, including ansible.cfg, which is normally expected by default to be in /etc/ansible. While you can use environment variables to change the expected location, I decided to just symlink /etc/ansible to the relevant location in my $HOME directory. YMMV.

sudo ln -s /etc/ansible /Users/rcrelia/code/ansible

Using Ansible With Your Vagrant Machine

In order to use Ansible, a minimum of two configuration files need to be used in whatever location you are using for your work: ansible.cfg and hosts. All other content will depend on whatever playbooks, host config files, and roles you create. The ansible.cfg in my repo is minimal with the defaults removed. However, you can find a full version in there named ansible.full.cfg for reference. Additionally, you will want to make sure you have a working log file for Ansible operations, with the default being /var/log/ansible.log. The output from all issued Ansible commands are logged in ansible.log.

Since Ansible uses SSH to communicate with managed nodes, you will want to use an account with root-level sudo privileges that is configured for SSH access, and ideally one that is passwordless. I personally use a ssh-agent process to store credentials and make sure that I configure the nodes to allow access using that private key via authorized_hosts. Do whatever makes sense for your environment.

By default, the bento Vagrant machine ships with a sudo-capable user called “vagrant”, whose private SSH key can be used for the initial Ansible run. I added that key to my ssh-agent:

ssh-add ~/vagrant-boxes/bento_ubuntu/.vagrant/machines/default/virtualbox/private_key

At this point, I can now communicate with my Vagrant Ubuntu VM using Ansible over a passwordless SSH connection. Let’s test that with a simple check on the node using Ansible’s setup module:

[rcrelia@fuji ansible]$ ansible myvm -m setup -e ansible_ssh_user=vagrant|head -25
myvm | SUCCESS => {
 "ansible_facts": {
 "ansible_all_ipv4_addresses": [
 "10.0.2.15",
 "192.168.0.99"
 ],
 "ansible_all_ipv6_addresses": [
 "fe80::a00:27ff:feb5:5b5e",
 "fe80::a00:27ff:fe28:3f0"
 ],
 "ansible_architecture": "x86_64",
 "ansible_bios_date": "12/01/2006",
 "ansible_bios_version": "VirtualBox",
 "ansible_cmdline": {
 "BOOT_IMAGE": "/vmlinuz-4.4.0-38-generic",
 "quiet": true,
 "ro": true,
 "root": "/dev/mapper/vagrant--vg-root"
 },
 "ansible_date_time": {
 "date": "2016-10-26",
 "day": "26",
 "epoch": "1477494044",
 "hour": "15",
 "iso8601": "2016-10-26T15:00:44Z",
[rcrelia@fuji ansible]$

Note that I specify the -e option to specify the default Vagrant user for my Ansible session. This is an override option and is only required for the initial playbook run from ansible-mojo. Once we’ve applied our main playbook, which sets up a user called “ansible”, we can then use that user for Ansible operations going forward (as specified by our remote_user setting in ansible.cfg).

At this point, we have a working installation of Ansible with a single manageable Ubuntu XenialXerus node based on Vagrant. In Part II, I will cover the workings of ansible-mojo and discuss various details around playbook construction, layering of plays, etc.



Externalizing domains in AWS Route53

I use AWS Route53 for registering domains that I use both personally and in my devops R&D lab work. It’s relatively inexpensive as registrars go (most of the ones I’ve registered are $12/yr) and domains integrate by default into Route53, which is very helpful for whatever hosting you perform via AWS.

However, sometimes I use domains in Route53 for external hosting applications, like blogs which hosted by WordPress.com. In order to use a custom domain with WordPress.com, you need to do two things when using R53 DNS:

  • change the NS records for the domain, and
  • change the DNS server list for zone delegation

Both of these are easily performed in the R53 administrative console, but in different places.

Updating the NS records for the domain

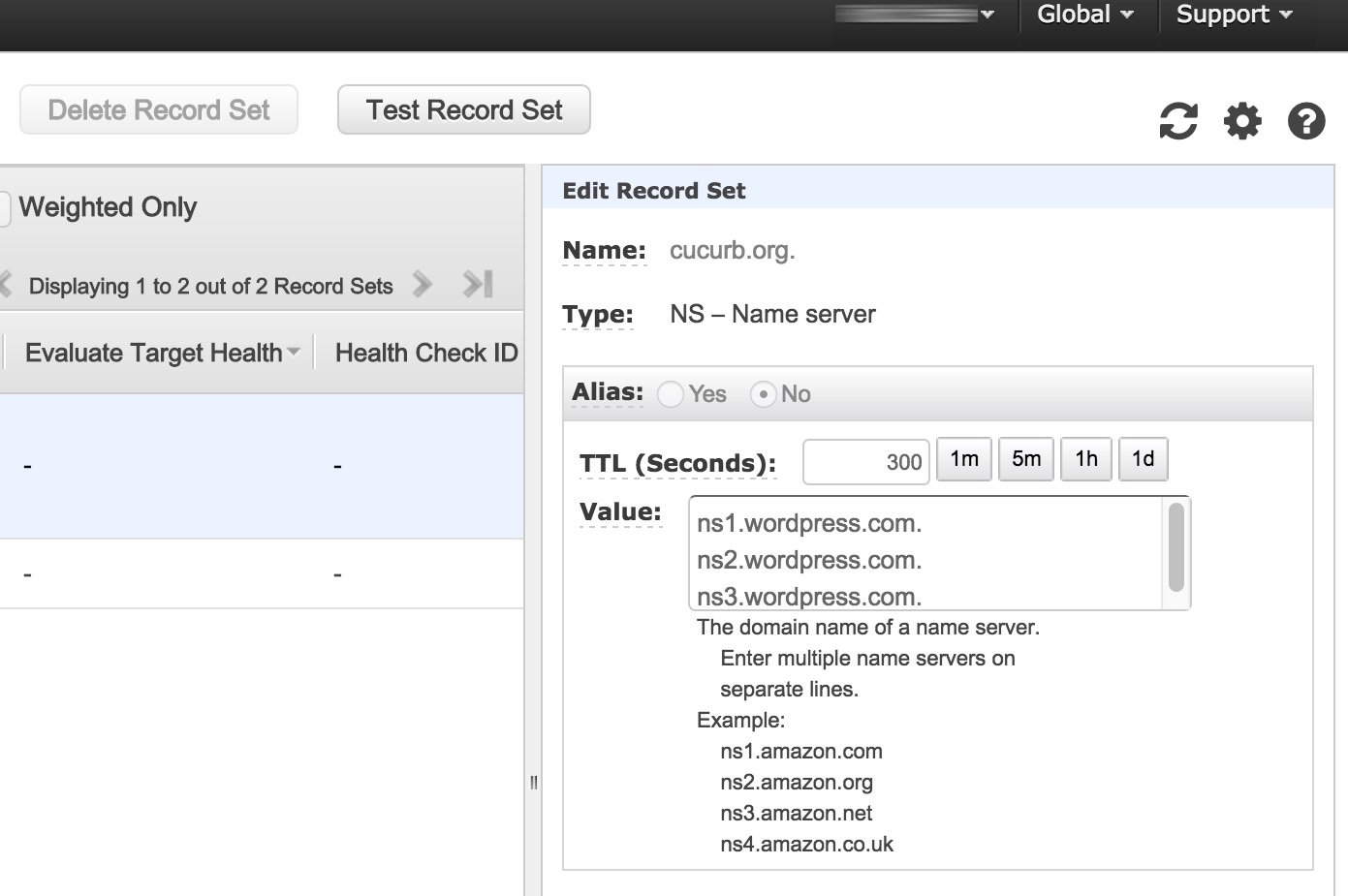

Changing the NS records is as simple as loading the hosted zone set and selecting the NS record entry and editing it to replace the AWS DNS servers that originally were placed in the record:

blog-cucurb-fig1-route53hostedzonensnew

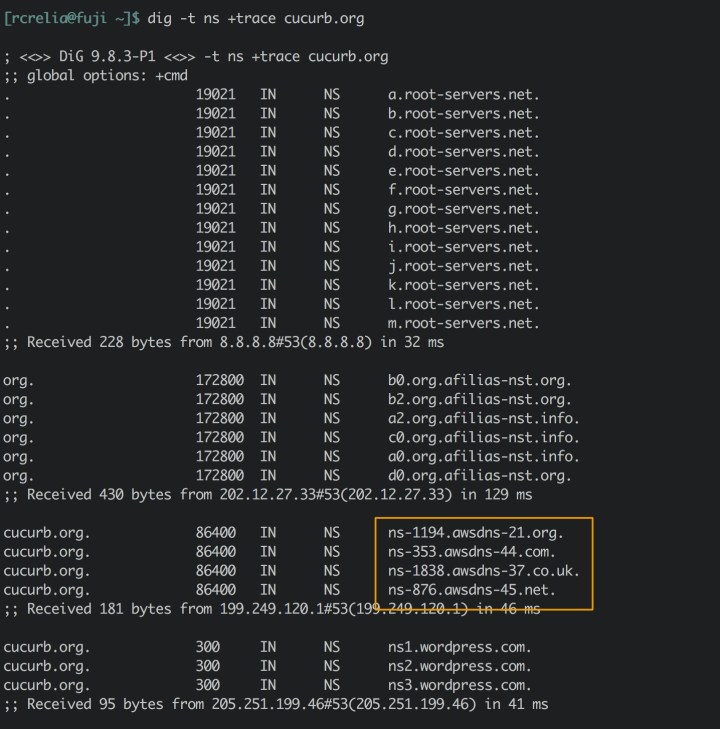

After the NS record changes propagate, I check the delegation paths for the domain since I haven’t changed that yet and notice that the TLD .org servers still look to AWS DNS servers:

blog-cucurb-fig3-route53predelegationchange

So, let’s change the delegation on our zone so that the TLD DNS servers look to the right place.

Updating the DNS server list for zone delegation

On the R53 console, navigate to Domains, Registered Domains, then select the domain you want to change. You should see a screen that lists some expiration, renewal, authorization, and tag parameters along with a list of name servers on the right side. That list needs to be edited in order to fix the delegation pathing for the new NS record entries.

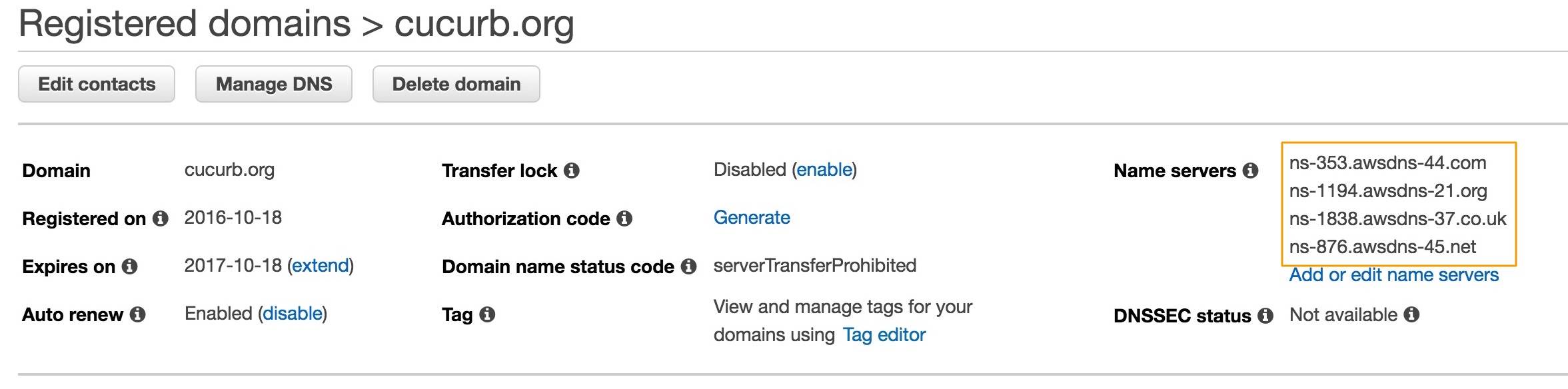

Original, with AWS DNS servers listed:

blog-regdomains-fig2-nameservers

Edited to use new DNS servers for external site:

blog-cucurb-fig4-route53hostedzonensupdated

It takes a while for these changes to go into effect, AWS will send you an email once the changes have been completed. At that point, you can check the delegation path again:

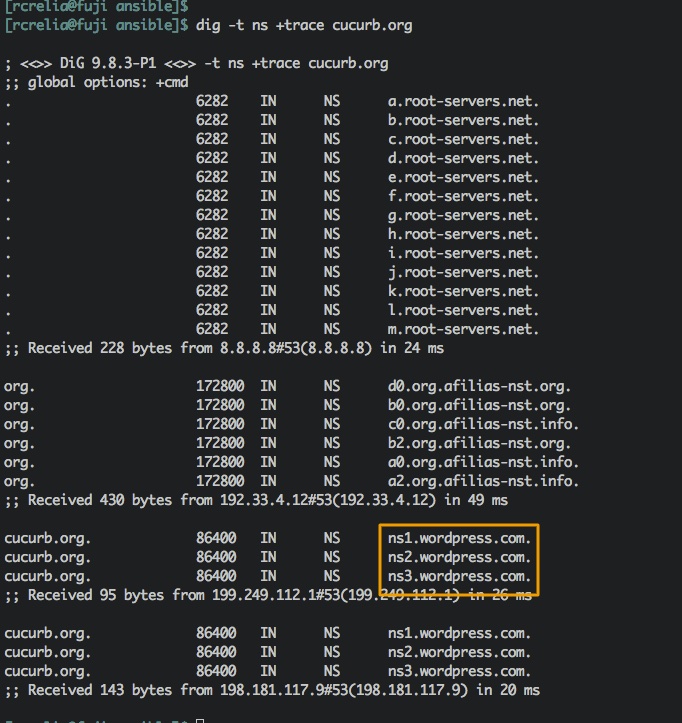

blog-cucurb-fig5-route53postdelegationchange

At this point, the delegation path between the new WordPress.com DNS servers and the TLD .org DNS servers is established and your application/blog should now be working.

Docker Shenanigans: Part II

For my Docker adventures, I opted to install Docker Toolbox on my MacBook Pro running Yosemite. Even though Docker Toolbox includes VirtualBox, I had an existing VirtualBox installation so I used that to host my Docker Engine instance instead of using docker-machine in Toolbox. My decision was based on the fact that I wanted to be able to test Docker services running on different host OS’s like CentOS, Ubuntu, and CoreOS using the same client software on my MBP. So, I built an Ubuntu Server 16.04 VM and configured Vagrant to use that image.

Using Ubuntu 16.04 LTS for Docker Engine, or Why Is Service Control So Wonky?

One pitfall that I ran into when installing Docker services on my Ubuntu VM was that the default install uses a local socket instead of TCP for daemon access. Since I wanted to be able to communicate with Docker from other nodes on my home network, I needed to change the default startup configuration. As it turns out, this is annoyingly less than straightforward because of the inconsistent state of service configuration for systemd on my VM.

Systemd is the current framework for service controls on Ubuntu and other distros like CentOS. However, the implementation is relatively new and has some gotchas that required creating an alternative configuration to change the DOCKER_OPTS parameter which is the recommended way of controlling Docker service advertisement.  In my case, I needed to do the following:

mkdir /etc/systemd/system/docker.service.d
vi /etc/systemd/system/docker.service.d/docker-tcp.conf

In docker-tcp.conf, I used this syntax to configure TCP communications with my Docker VM:

[Service]
ExecStart=
ExecStart=/usr/bin/docker daemon --host=tcp://192.168.0.50:2375 --host=fd://

where 192.168.0.50 is the exposed interface on my home network for the Docker Engine. To activate this configuration, I had to tell systemd to reload and restart my Docker instance:

systemctl daemon-reload
systemctl restart docker

After this, I set the DOCKER_HOST environment variable on my client node

export DOCKER_HOST=192.168.0.50:2375

and was then able to connect to Docker Engine in the Ubuntu VM from my native OS X Docker client:

[rcrelia@fuji ~]$ export DOCKER_HOST=192.168.0.50:2375
[rcrelia@fuji ~]$ docker info
Containers: 4
 Running: 0
 Paused: 0
 Stopped: 4
Images: 3
Server Version: 1.12.2
Storage Driver: aufs
 Root Dir: /var/lib/docker/aufs
 Backing Filesystem: extfs
 Dirs: 24
 Dirperm1 Supported: true
Logging Driver: json-file
Cgroup Driver: cgroupfs
Plugins:
 Volume: local
 Network: overlay host null bridge
Swarm: inactive
Runtimes: runc
Default Runtime: runc
Security Options: apparmor seccomp
Kernel Version: 4.4.0-43-generic
Operating System: Ubuntu 16.04.1 LTS
OSType: linux
Architecture: x86_64
CPUs: 1
Total Memory: 992.4 MiB
Name: ubuntu
ID: H3HJ:MMBL:4S3N:56X7:JW2P:AUC6:6XRT:UNV4:KS2Q:UNDM:JXJ3:5MSH
Docker Root Dir: /var/lib/docker
Debug Mode (client): false
Debug Mode (server): false
Registry: https://index.docker.io/v1/
WARNING: No swap limit support
Insecure Registries:
 127.0.0.0/8
[rcrelia@fuji ~]$

At this point, I now have a working Docker Engine VM that is independent of the client software installed on my laptop via Docker Toolbox.
